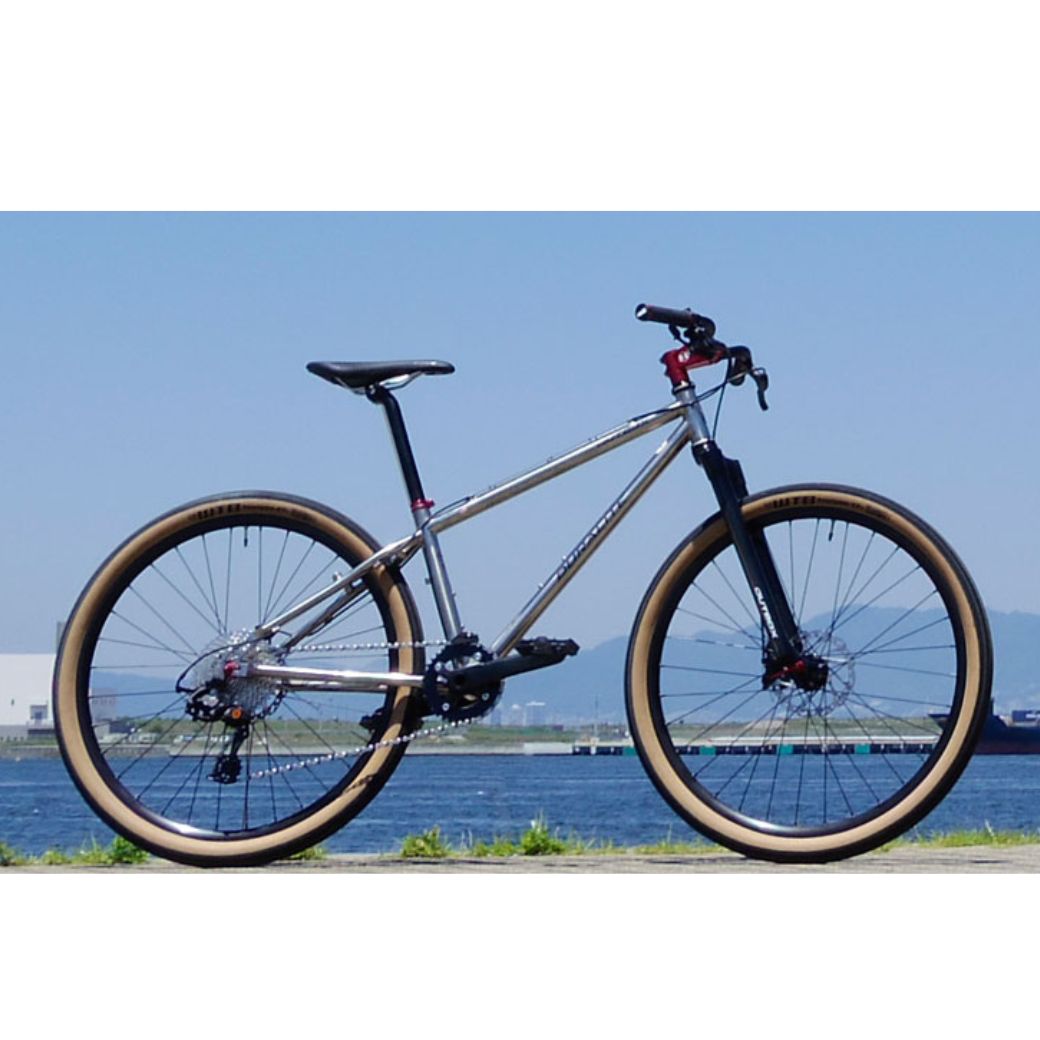

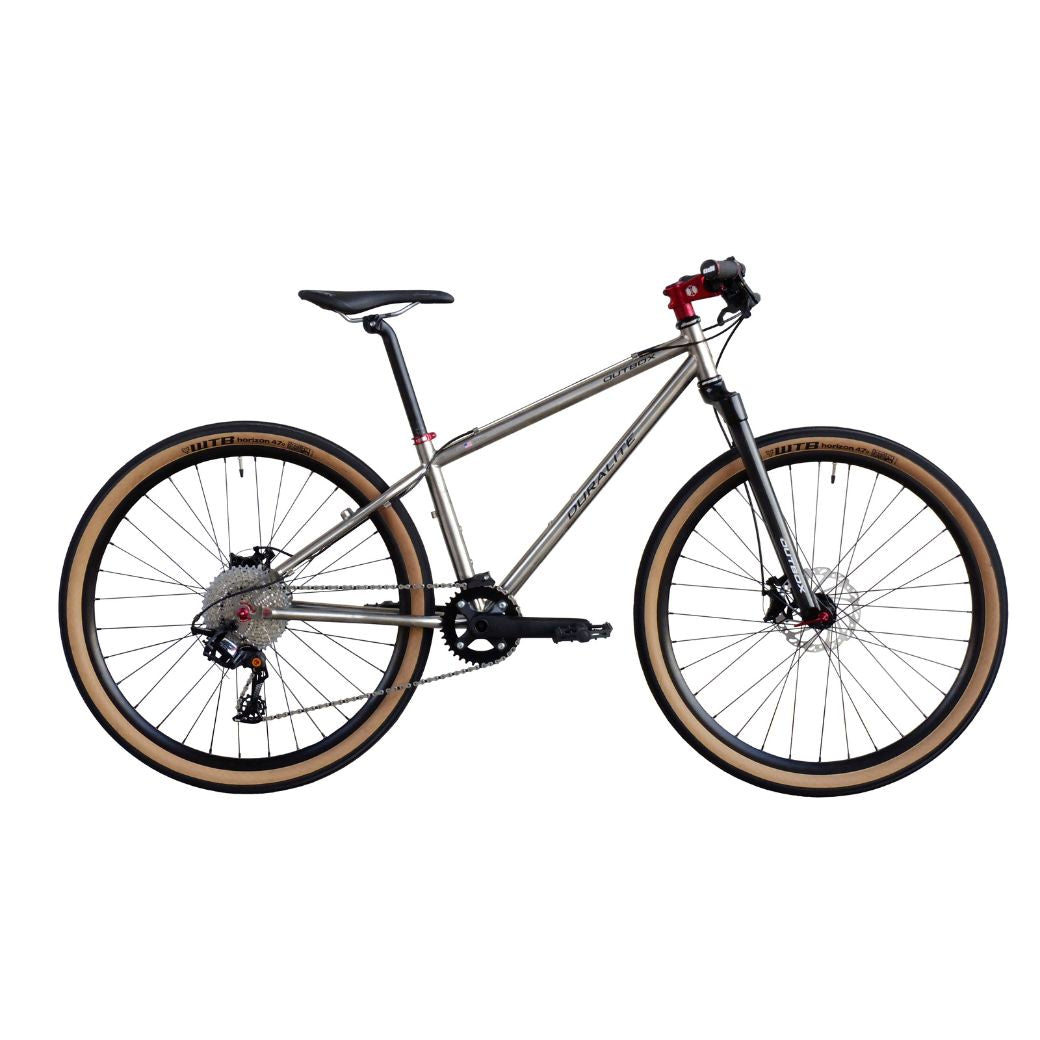

A ROAD BIKE THAT IS LIGHT AND EASY TO RIDE ON

Product ID: SMARTCOG OUTBOX ONE 14

Features

• Made in USA Grade-9 titanium alloy frame : the high elasticity and excellent damping properties allows you to enjoy an easy comfortable ride
• Designed as a commuter that can be ridden casually and as a base for touring
• Full carbon rigid fork and air volume 650B 47c slick tires
• The operation system composed of simple and tough components with consideration given to facilitate maintenance
• Runs lightly and supple

Enjoy $100 voucher for use in shop at X-Boundaries Mandarin Gallery for each purchase. Voucher valids for 1 month.

Components

FRAME & FORK

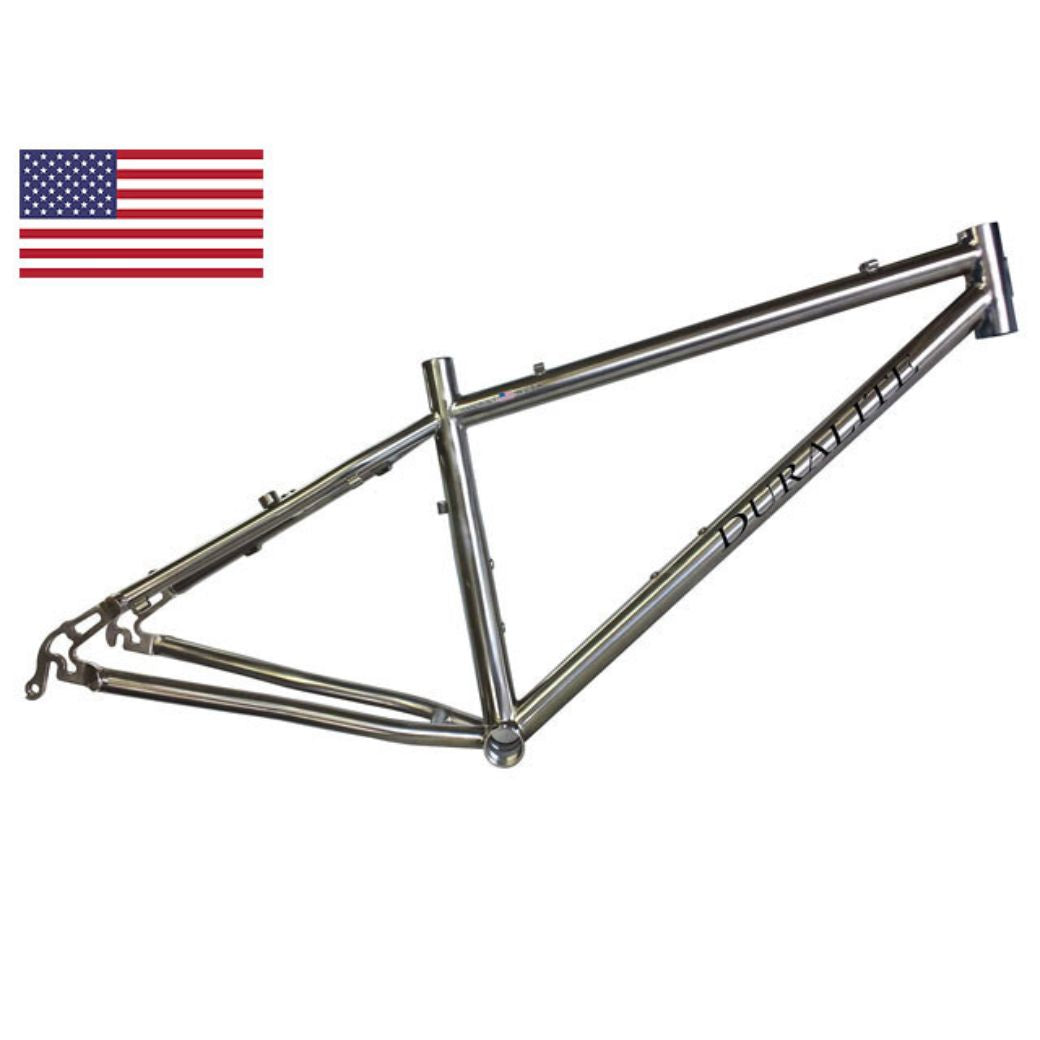

The frame uses USA Elixxir Duralite Grade-9 (Ti-3AL-2.5V) titanium seamless butted tube. The durability of the welded part is improved by double welding (double welding) with a skilled welder.

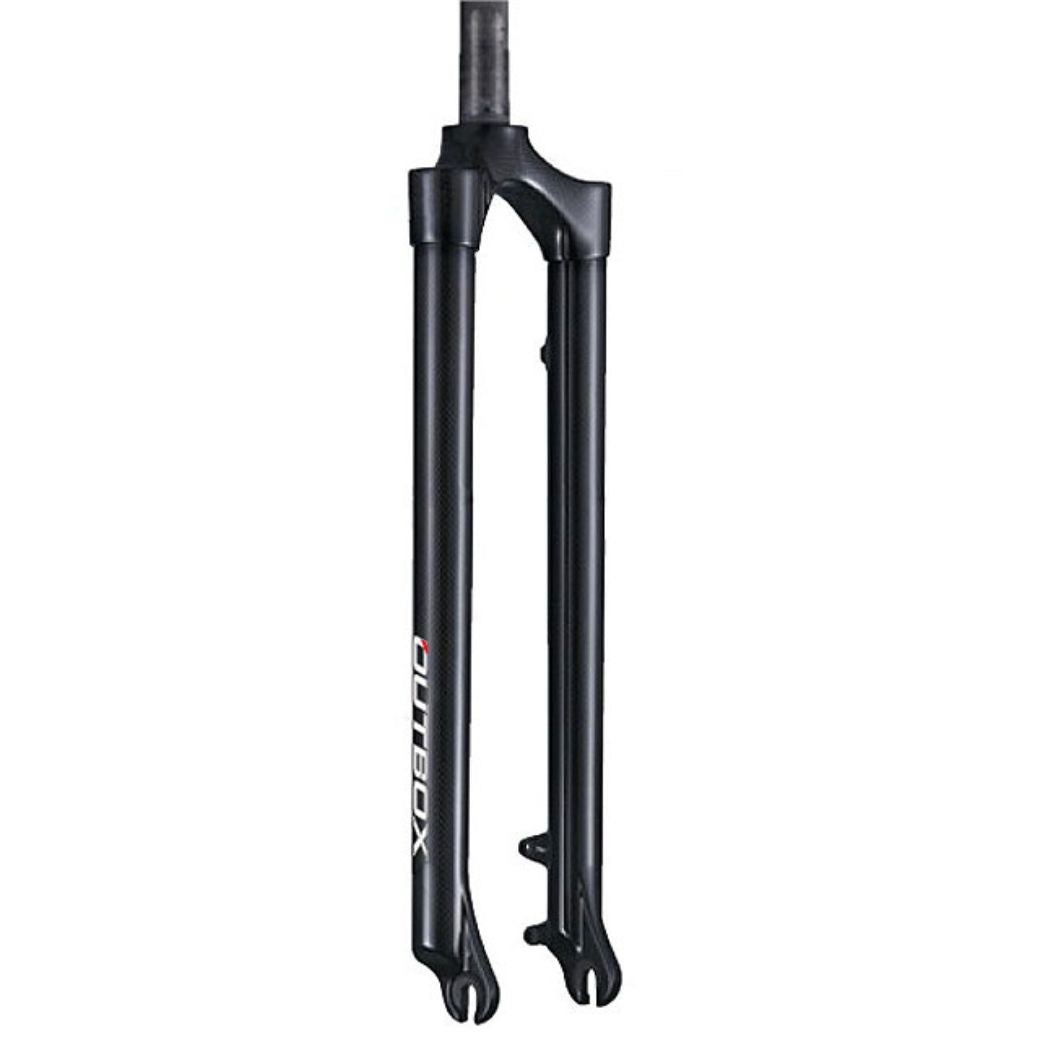

A specially designed full carbon rigid fork is used for the front fork.

Lightweight specification with a total weight of only 1.7 kg for the frame and fork.

Titanium is a metal that does not corrode in normal atmosphere. It will never lose its silvery white shine.

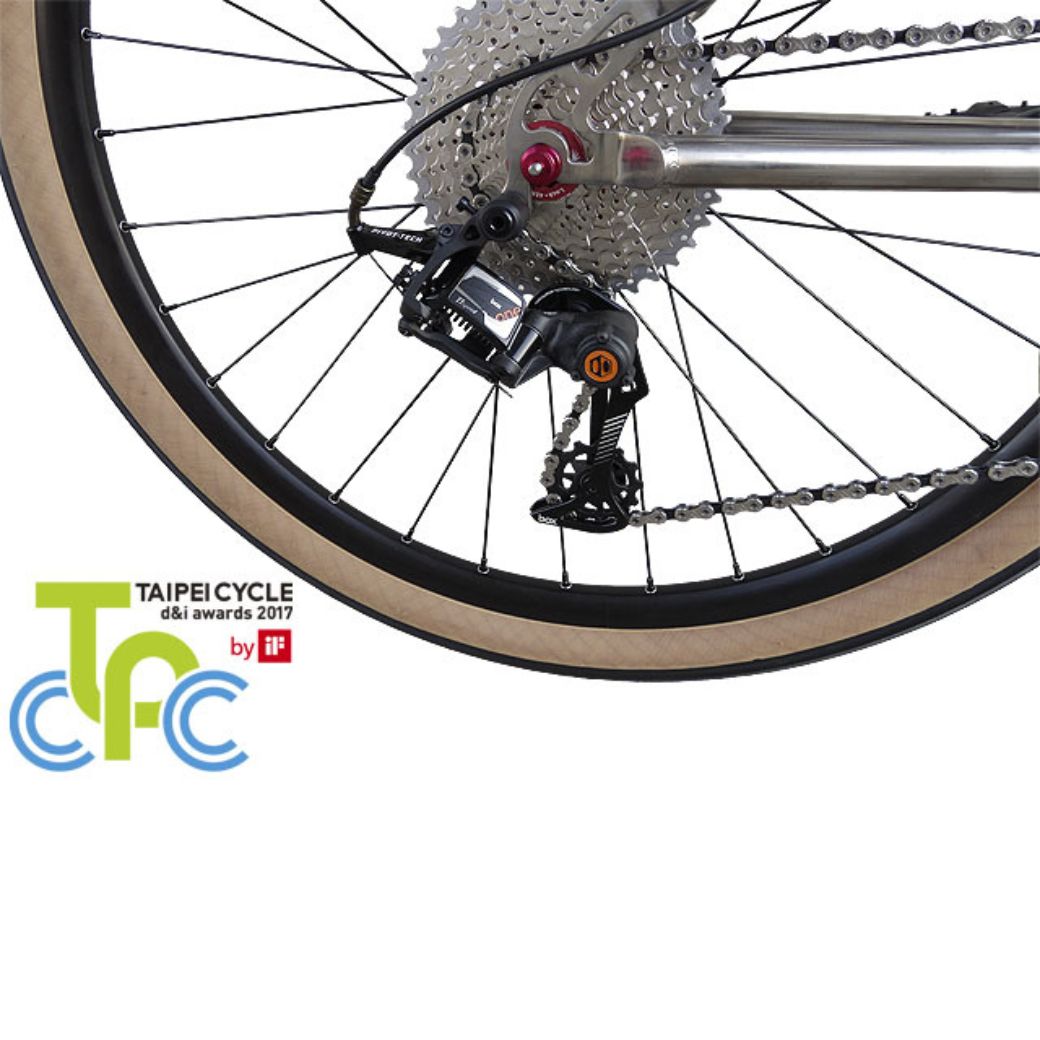

The DRIVE TRAIN

The derailleur adopts the carbon composite Box One 11-Speed, which was introduced to the MTB market by Box Component, the number one BMX & MTB component brand in the United States.

It corresponds to a super wide ratio with an original mechanism. This derailleur won the D&I Best Award at the Taipei Cycle Show 2017, where the world's most advanced components are gathered for its high reliability and performance.

Equipped with a Push & Push shifter that can be operated with just your thumb.

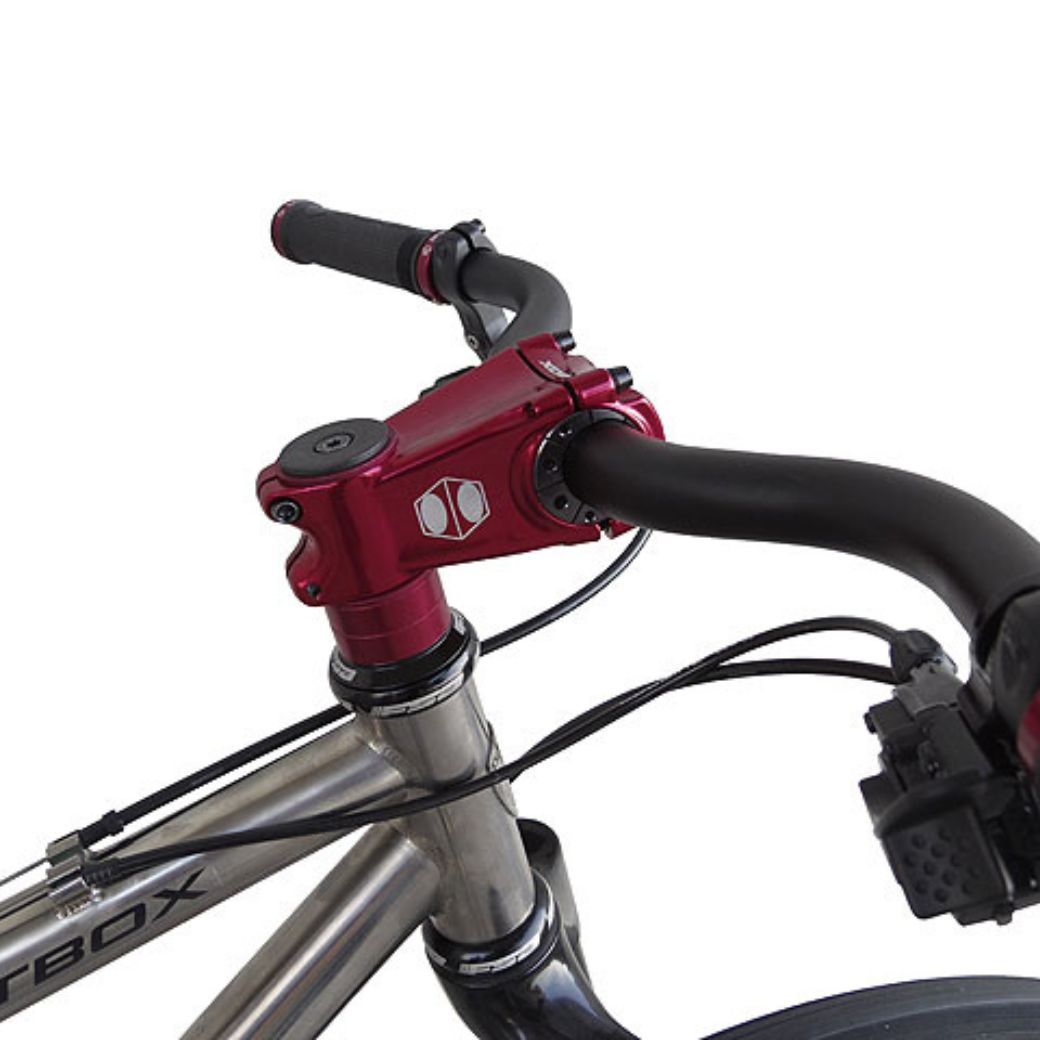

The COCKPIT
The handlebar is a combination of a cruiser bar that allows you to easily change your riding position from an upright position to a crouching position by bending and stretching your elbows.

The Box Cusp stem incorporates an original eccentric extension adjustment mechanism which allows for fine adjustment.

The grip is equipped with the popular Box One lock-on grip made by ODI in the United States as standard equipment.

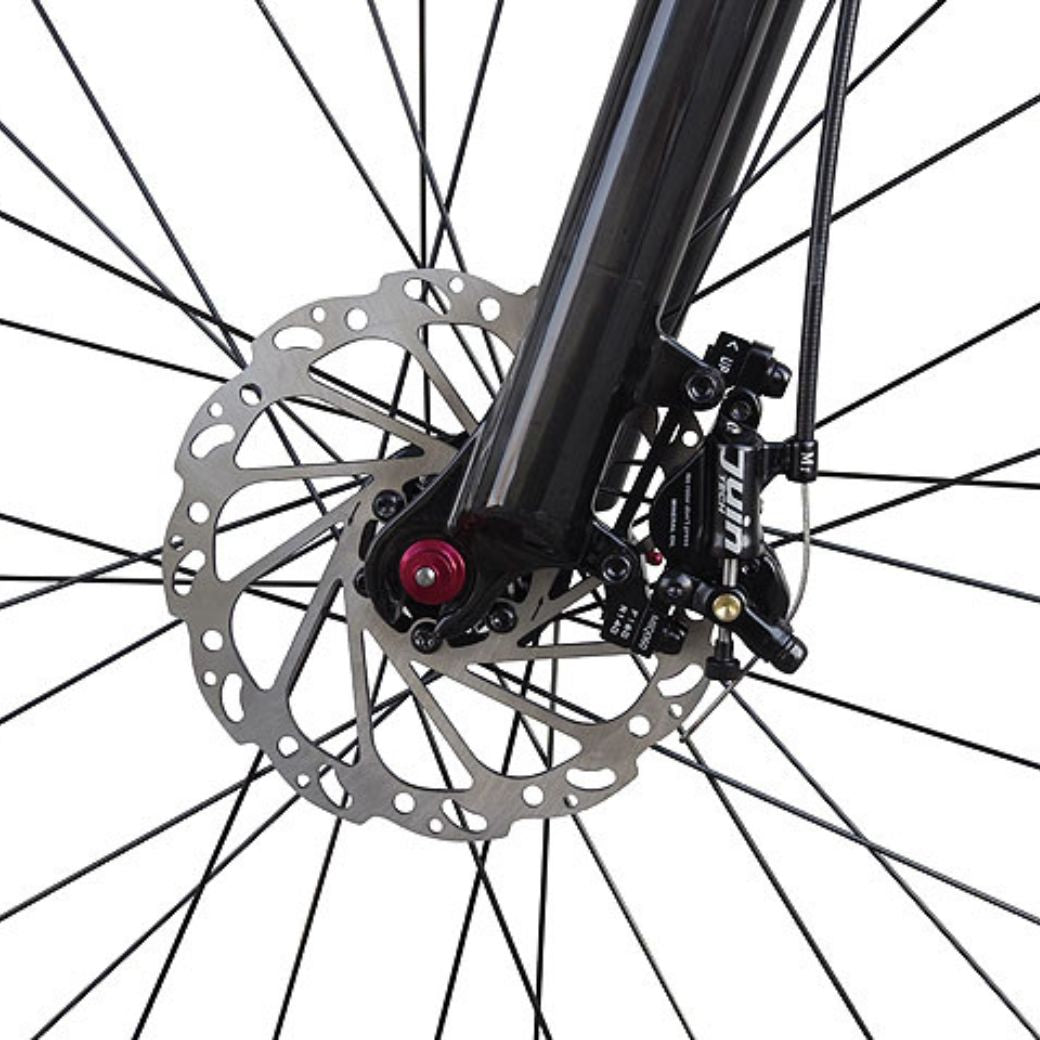

The DISC BRAKE
The brake system uses the Juin Tech M1 hybrid system, which has a hydraulic cylinder built into the caliper body and controlled by a cable.

Although it demonstrates strong stopping power, it is a reliable system that does not require maintenance other than replacing brake pads for a long period of time because it does not require hydraulic hoses. You can easily adjust the brake touch by pulling the cable.

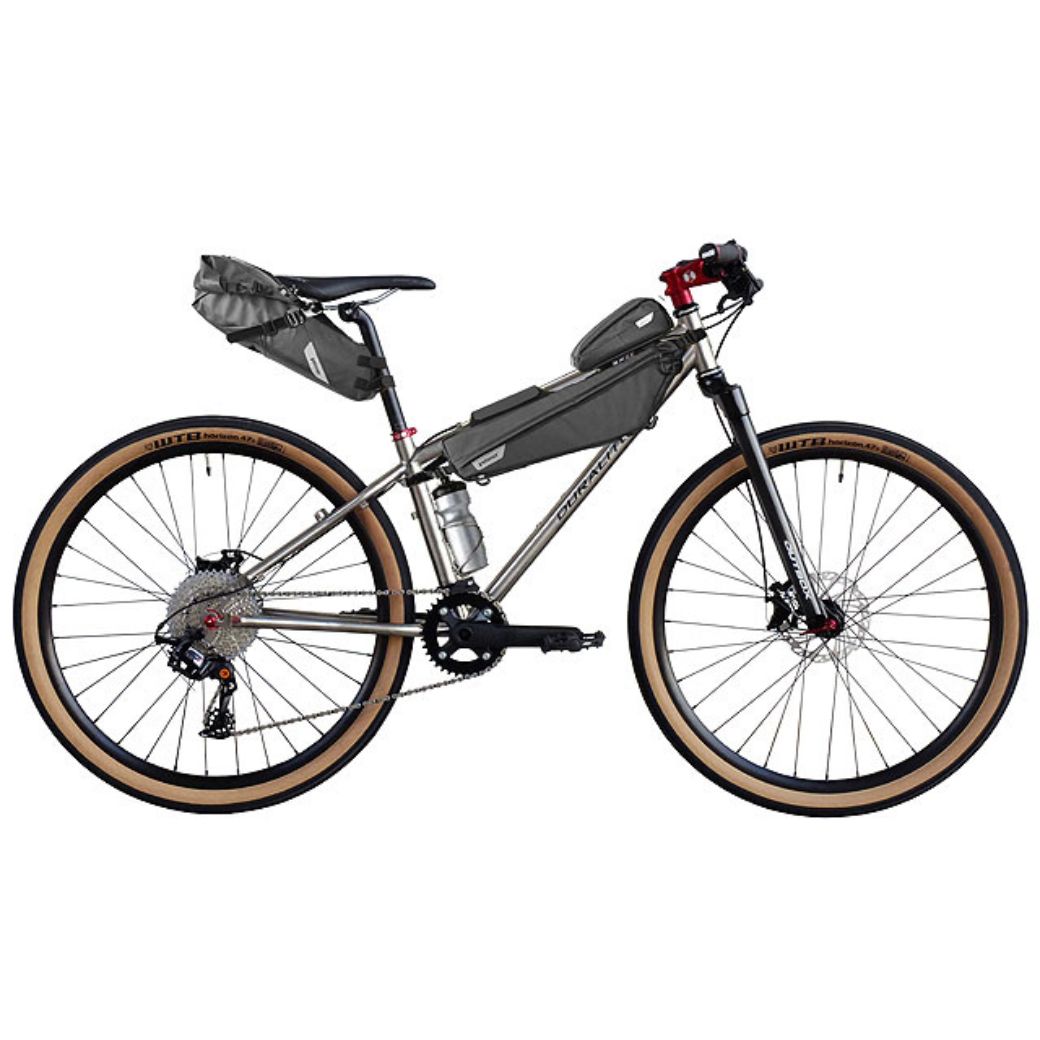

The BIKE PACKING

The sloping top tube design and long 350mm seat post makes it easy to mount large capacity saddlebags popular with bikers.

Frame Geometry



Overview

Color	Titanium Silver (SV)
Weight	10.00kg (including pedals)



Spec

Frame	Grade-9 titanium alloy (Ti-3AL-2.5V) seamless butted
Front Fork	Full carbon rigid
Headset	FSA Aluminum Ahead Sealed Bearing
Handle	Aluminum cruiser bar 600mm
Stem	Box Cusp 35x65mm + Eccentric Adjuster
Shift Lever	Box One Push & Push Shifter
Derailleur	Box One Carbon Composite 11-speed
Crank	Forged aluminum 2-piece 175mm 4-arm
BB Set	Shield bearing 68mm
Chain	KMC 11-SPEED
Break	Juin Tech Hybrid Hydro Disc
Tires	WTB Horizon 650B 47c Slick
Seat clamp	Box One ODI
Saddle	Corones Ergo Fitting Cr-Mo Rail
Seat Post	Aluminum 27.2x350mm
Chain Ring	Aluminum 36T
Cassette cog	11-13-15-17-19-21-24-28-32-38-40T
Pedal	Nylon body 9/16” Cr-Mo axle
Grip	Box One ODI
Rim	Aluminum double wall 32H with eyelets
Hub	Aluminum sealed bearing Ti QR shaft
Tube	Butyl French valve
Frame finish	Natural Titanium Color (Low Polish)



• Chips and photos may differ slightly from the actual colors
• This product cannot be paid by cash on delivery.
• Warranty Policy

Delivery of bicycle

We will arrange delivery to your address in Singapore for free either by Lalamove or Easyparcel. Other destination subject to delivery charges.

The product arrives in a tuned state so you can use it right away.

Test ride of the bicycle is not available.

Optional Parts

• Handle bag - $79.90
• Seat bag - $89.90
